1.5KV隔离电压 15瓦 4:1宽输入电压 直流对直流电源转换器

67DW-R3

  • 15瓦 DIL包装。
  • 宽输入4:1电压范围。
  • 100%高温预烧测试。
  • 效率高达86%。
  • 可提供客制化。
  • 具备遥控开关功能。
  • 符合UL94V-0规范包装材质。
  • 操作环境温度:-40°C 至 +85°C。
  • 产品保固3年。


Part Number


Part NumberInput VoltageInput CurrentOutput VoltageOutput CurrentEfficiencyCapacitor Load
VdcNo-Load
(mA TYP)		Full Load
(mA TYP)		VdcFull Load
(mA)		%TYPuF Max
67DW-24S03R39-36606633.34000833300
67DW-24S05R39-366072753000863300
67DW-24S12R39-364072712125086330
67DW-24S15R39-362072715100086330
67DW-24D05R39-3670754± 5± 150083± 2000
67DW-24D12R39-3640726± 12± 62586± 330
67DW-24D15R39-3640726± 15± 50086± 330
67DW-48S03R318-75303313.34000835600
67DW-48S05R318-753036353000865600
67DW-48S12R318-753036312125086680
67DW-48S15R318-753036315100086680
67DW-48D05R318-7530377± 5± 150083± 3300
67DW-48D12R318-7530363± 12± 62586± 220
67DW-48D15R318-7530363± 15± 50086± 220


Input Specifications


ParametersConditionsMinTypMaxUnits
Voltage Types   4:1
FilterPi TYPE


Output Specifications


ParametersConditionsMinTypMaxUnits
Voltage ToleranceFull load@Vin(nom.)  ± 2%
Short Circuit ProtectionHiccup, automatic recovery
Line Regulation   ± 0.5%
Load RegulationSingle
Dual (Balance Load)		  ± 0.5
± 1.0		%
Cross RegulationDual (25% to 100% Load)  ± 5%
Ripple & NoiseOutput:3-15V TYPES
BW=DC To 20MHz		  100mVp-p
Output >15V TYPES
BW=DC To 20MHz		  1% of VoutmVp-p
Transient response setting time25% load step change 300 us


General Specifications


ParametersConditionsMinTypMaxUnits
Isolation Voltage  1500 Vdc
Isolation Resistance500Vdc1000  MΩ
Switching Frequency  300 KHz
Operating TemperatureWith derating-40 +85°C
Storage Temperature -55 +125°C
HumidityNon Condensing5 95%
CoolingNatural Convection (20LFM)
Case MaterialNickel coated copper with no-conductive base
MTBFMIL-HDBK-217F@25℃2.43x106  Hours
Weight 32.6g
Dimensions 50.8 x 25.4 x 10.6mm

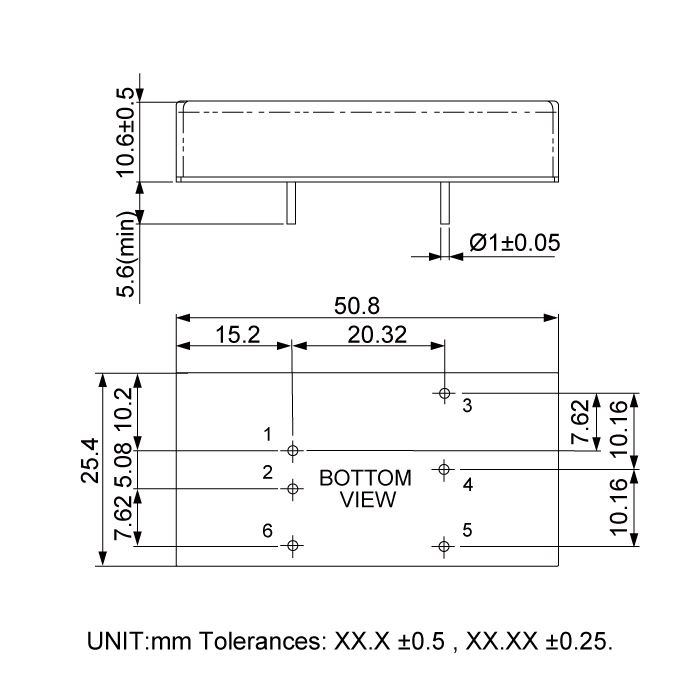

Dimensions
