2W 1.5KV隔离电压 2:1宽输入电压 DC-DC电源转换器

29D

  • 2:1宽输入电压
  • 16PIN DIL包装
  • 效率高达83%
  • 稳压输出类型
  • 内部为SMD结构
  • 不需外部零组件
  • 操作环境温度:-40℃ 至 +85℃
  • 工业标准引脚


Part Number



Part NumberInput Voltage RangeOutput VoltageOutput CurrentEfficiency
VdcVdcmA%TYP
29D-05S03R4.5-93.350070
29D-05S05R4.5-9540070
29D-05S12R4.5-91216775
29D-05S15R4.5-91513378
29D-05S24R4.5-9248480
29D-12S03R9-183.350070
29D-12S05R9-18540075
29D-12S12R9-181216780
29D-12S15R9-181513380
29D-12S24R9-18248483
29D-24S03R18-363.350070
29D-24S05R18-36540076
29D-24S12R18-361216780
29D-24S15R18-361513380
29D-24S24R18-36248483
29D-05D05R4.5-9± 5± 20070
29D-05D12R4.5-9± 12± 8475
29D-05D15R4.5-9± 15± 6778
29D-05D24R4.5-9± 24± 4280
29D-12D05R9-18± 5± 20075
29D-12D12R9-18± 12± 8480
29D-12D15R9-18± 15± 6780
29D-12D24R9-18± 24± 4283
29D-24D05R18-36± 5± 20076
29D-24D12R18-36± 12± 8480
29D-24D15R18-36± 15± 6780
29D-24D24R18-36± 24± 4283


Input Specifications


ParametersConditionsMinTypMaxUnits
Voltage ToleranceVo,Io Nom  2:1
FilterCapacitor


Output Specifications


ParametersConditionsMinTypMaxUnits
Voltage Tolerance100% full load  ± 2%
Short Circuit ProtectionContinuous
Line RegulationRegulated  ± 0.5%
Load RegulationRegulated  ± 0.8%
Ripple & NoiseBW=DC To 20MHz  100mVp-p
Transient response setting time50% load step change 350 us


General Specifications


ParametersConditionsMinTypMaxUnits
Isolation Resistance500Vdc1000  MΩ
Switching FrequencyFull load, nominal input 100 KHz
Operating Temperature -40 +85°C
HumidityNon Condensing  95%
CoolingFree air Convection
Case materialDAP
MTBFMIL-HDBK-217F@25℃1500000  Hours
Weight 5.2g
Dimensions 24.1x14.35x8.25mm

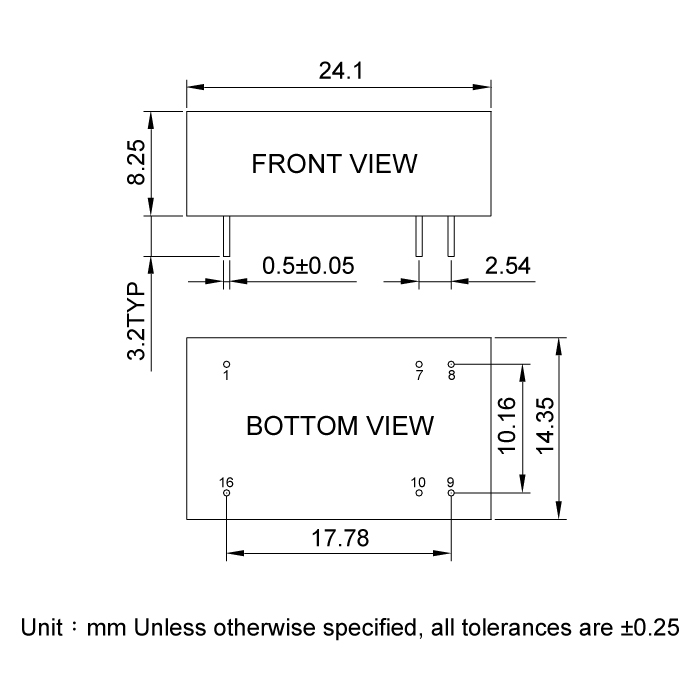

Dimensions
